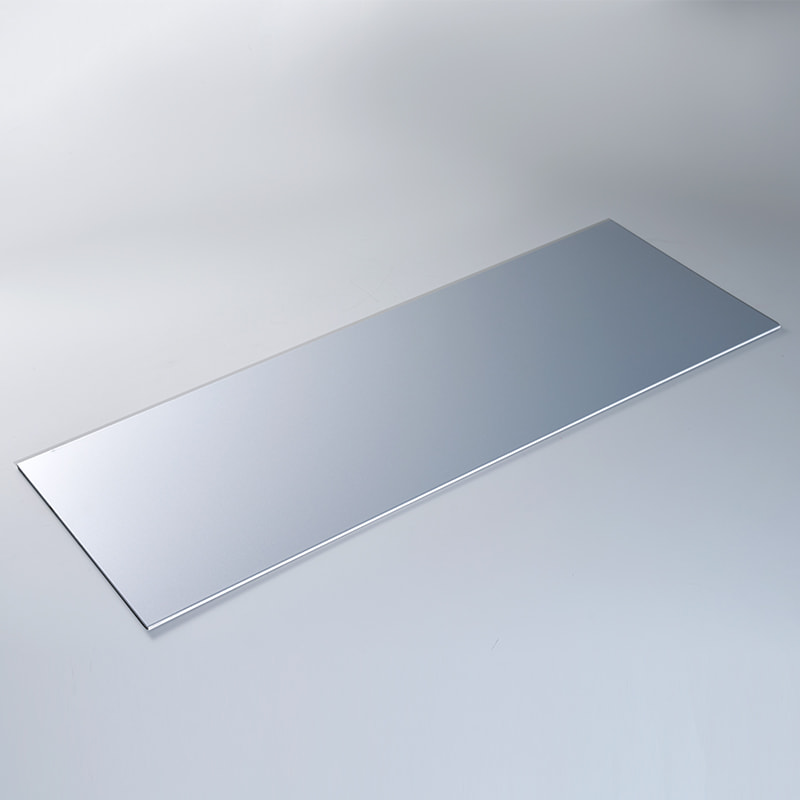

Metallic Finish Aluminum Composite Panel (ACP)

- Technical Specifications

- Product Description

Item:

Description

Aluminum Alloy Grade:

1100 H18, 1050 H14, 3003, 3004, 3105, 5005

Coating Type:

PE coating, HDP high weather-resistant polyester coating, FEVE fluorocarbon coating, PVDF fluorocarbon coating

Aluminum Skin Thickness:

0.05mm - 0.5mm (Custom available)

Total Panel Thickness:

1.5mm - 8mm (Custom available)

Panel Width:

Max customized width: ≤1500mm

Panel Length:

Fully customization

Color Range:

Full color customization available, follow RAL color card or customer samples

Protective Film:

OEM & ODM customization supported

Engineering Structure

This Aluminum Composite Panel (ACP) consists of:

Two aluminum alloy sheets (PVDF / FEVE / HDP-coated)

LDPE or fire-retardant mineral core

Metallic finish surface coating system


This structure ensures both:

Decorative metallic appearance

Mechanical stability for facade installation systems


Engineering & Cost Advantages vs Solid Metal Panels

Compared with solid aluminum sheets and stainless steel facade panels, Metallic Finish Aluminum Composite Panel (ACP) provides measurable engineering advantages:

1. Weight Reduction at Facade System Level

ACP weight: 3.5–5.5 kg/m²

Solid aluminum panels: 8–15 kg/m²

Benefits:

Reduced curtain wall structural load

Lower steel subframe reinforcement cost

Easier handling for high-rise facade installation


2. Installation Efficiency Improvement

Metallic ACP panels are compatible with modular curtain wall systems:

20–40% faster installation vs solid metal panels

Standardized panel cutting improves alignment accuracy

Reduced crane/lifting equipment dependency


3. Fabrication Flexibility for Architectural Design

This Metallic Aluminum Composite Panel (ACP) supports:

Minimum bending radius: 15–30 mm (based on thickness)

CNC cutting/routing/folding

Curved facade design systems (wave/column/box structures)

Enables architects to achieve metallic facade effects without the cost of solid metal.


4. Total Project Cost Optimization

For large-scale facade systems:

30–60% lower material cost vs solid aluminum sheets

Reduced installation labor cost per m²

Lower transportation cost per container

Higher installation efficiency in modular facade systems


Typical Applications of Metallic Finish ACP Panels

Aluminum Composite Curtain Wall Systems

Commercial building facade cladding

Shopping mall and hotel exterior decoration

Airport/metro/transport hub wall systems

Architectural signage systems (metallic branding facade)

Interior metallic wall decoration systems


OEM / ODM Capability

Custom Colors: Full color range available, customized per RAL color card or customer samples.

Custom Sizes: Adjustable panel thickness, skin thickness, length, and width as required.

Custom Finishes: PE / HDP / FEVE / PVDF coating optional; screen printing & UV printing supported.

Custom Packaging & Film: Custom protective film and outer packaging are acceptable.


Customer Engineering Value

Designed for:

Curtain wall contractors

Building material distributors

Signage fabrication companies

EPC construction companies

Real estate development projects


Key value:

Reduces total facade system cost per m²

Compatible with standard Aluminum Composite Panel installation systems

Stable export supply for large construction projects

High container loading efficiency for global shipping

Contact Us
  • - Procurement Information
  • - FAQ
  • - Warranty Policy

Order Type

MOQ

 Lead Time

 Logistics

Payment Terms

Custom (Aluminum skin ＜0.18mm)

500kg per color

Working days after deposit received.

Goods will be delivered upon full balance payment.

Sea / Air / Land Transport T/T

Custom (Aluminum skin ＞0.18mm)

800kg per color

15-20 working days after deposit received.

Goods will be delivered upon full balance payment.

 Sea / Air / Land Transport T/T

Note: No standard stock available, all products are made-to-order.

Target Buyers: Overseas building material distributors, engineering contractors, signage manufacturers and decoration companies.

Q1: Will a metallic-finish ACP get rusty outdoors?

No. The metallic effect is created by surface coating with no exposed metal. Professional weather-resistant coatings effectively prevent rust and oxidation in outdoor environments.

Q2: Will the metallic luster fade over time?

Our high-performance coatings have good gloss retention after professional aging tests. FEVE and PVDF-coated panels maintain stable luster for much longer service life.

Q3: Can the panel be bent for special shapes?

Yes. It retains excellent processability of standard ACP, supporting grooving, bending, and curving for various designs.

Warranty shall comply with the standard of ACP with the corresponding coating, as detailed below:

PE (Polyester) Coating

Single-coat PE: 2-year warranty. No warranty for green, yellow, orange and grey color series.

Double-coat PE: 3 years warranty. No warranty for green, yellow, orange and grey color series.

HDP (High Weather-resistant Polyester) Coating

Green, yellow, orange and grey color series: 3 years warranty.

Other color series: 5 years warranty.

FEVE (Fluorocarbon) Coating

Tinted light colors (pink, light blue, light green, light yellow, light grey, etc.): 6 years warranty.

Other color series: 10 years warranty.

PVDF (Fluorocarbon) Coating

Tinted light colors (pink, light blue, light green, light yellow, light grey, etc.): 10 years warranty.

Other color series: 15 years warranty.

Notice: All warranty periods are based on actual outdoor tests in multiple regions worldwide, without exaggerated publicity. The actual service life of the panel is longer than the stated warranty period. The warranty only covers quality issues such as coating fading and chalking. Man-made damage, improper installation, and extreme natural disasters are not covered. Products used within 3 kilometers from the seashore, in a strong alkali environment, or in a long-term humid environment are excluded from the warranty.
