Home / Products / Exterior Aluminum Composite Panel / High Weather-resistant Polyester Aluminum Composite Panel

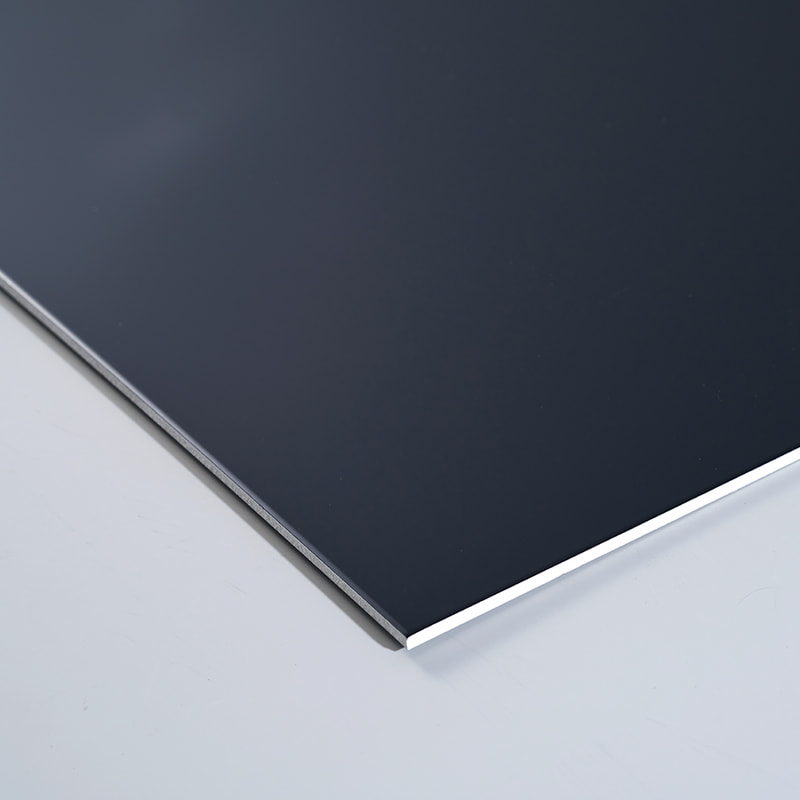

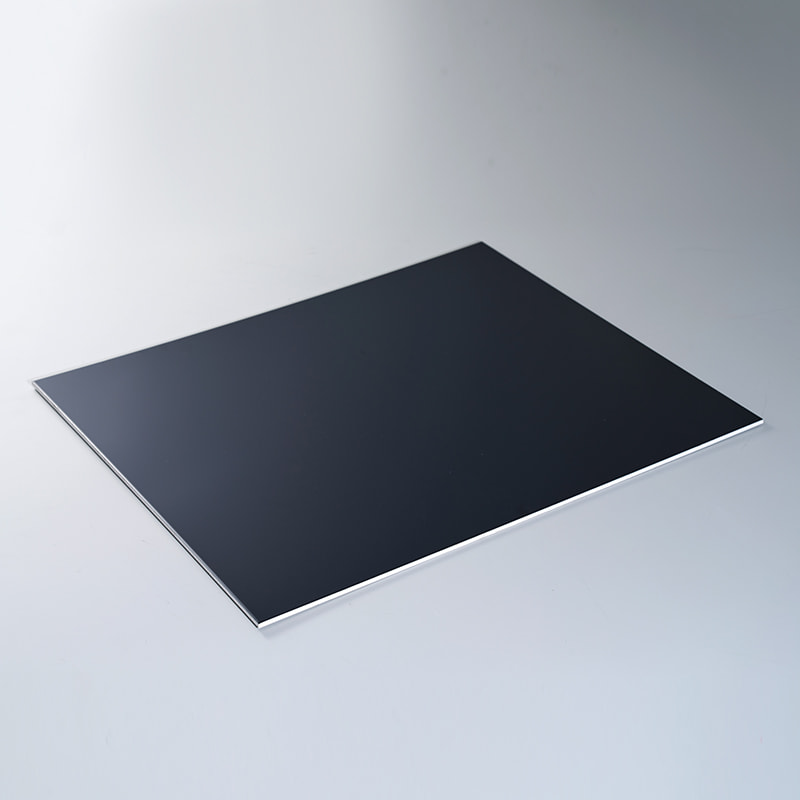

High Weather-resistant Polyester Aluminum Composite Panel

- Technical Specifications

- Product Description

Item:

Description

Aluminum Alloy Grade:

1100 H18, 1050 H14, 3003, 3004, 3105, 5005

Coating Type:

HDP High Weather-resistant Polyester Coating

Aluminum Skin Thickness:

0.05mm - 0.5mm (Custom available)

Total Panel Thickness:

1.5mm - 8mm (Custom available)

Panel Width:

Max customized width: ≤1500mm

Panel Length:

Fully customization

Color Range:

RAL colors or customized colors

Protective Film:

OEM & ODM customization supported

Engineering Structure

HDP Aluminum Composite Panel consists of:

Two aluminum alloy sheets

High Weather-resistant Polyester (HDP) coating

LDPE or fire-retardant mineral core

The HDP coating system improves long-term outdoor durability while preserving the fabrication flexibility and lightweight characteristics of Aluminum Composite Panels.



Engineering & Performance Advantages

1. Enhanced Weather Resistance

Compared with conventional PE coating, HDP technology provides stronger protection against:

Ultraviolet radiation

Surface chalking

Color fading

Moisture penetration

Temperature fluctuations

This helps maintain a cleaner and more consistent facade appearance throughout its service life.



2. Cost-Effective Exterior Solution

HDP ACP fills the performance gap between PE and PVDF systems.

Benefits include:

Better outdoor durability than PE

Lower investment than PVDF

Excellent cost-performance ratio

Suitable for medium-term architectural projects

For many commercial buildings, HDP provides sufficient weather resistance without exceeding project budgets.



3. Compatible with Standard ACP Fabrication

HDP coating does not affect panel processing.

Panels remain suitable for:

CNC routing

Grooving

Folding

Bending

Curving

Curtain wall fabrication

This allows contractors to use standard ACP manufacturing and installation methods.



4. Lower Lifecycle Maintenance

Improved coating durability reduces:

Surface fading

Frequent repainting

Appearance deterioration

Maintenance frequency

This helps reduce operational costs throughout the building lifecycle.


Typical Applications of HDP ACP Panels

HDP Aluminum Composite Panel is widely used for conventional exterior architectural applications requiring reliable weather resistance.

Typical applications include:

Commercial building facades

Office buildings

Hotels

Shopping centers

Educational facilities

Hospitals

Municipal buildings

Retail storefronts

Exterior wall renovation projects

Outdoor signage systems


Customer Engineering Value

Designed for:

Curtain wall contractors

Building material distributors

EPC construction companies

Commercial developers

Exterior renovation contractors

Architectural facade manufacturers



Key Value

Provides improved outdoor durability compared with standard PE-coated ACP.

Offers an economical alternative to fluorocarbon coating systems for conventional exterior projects.

Compatible with standard ACP fabrication and installation methods.

Delivers reliable appearance retention for commercial and public buildings.

Stable production capacity supports large international construction projects.


OEM / ODM Capability

Custom Colors: RAL color matching and project-specific colors.

Custom Sizes: Panel thickness, aluminum skin thickness, width and length

Custom Coating Specifications: Different HDP coating systems for various climatic conditions.

Custom Protective Film & Packaging: Private labels, customized packaging and project identification are available.

Contact Us
  • - Procurement Information
  • - FAQ
  • - Warranty Policy

Order Type

MOQ

 Lead Time

 Logistics

Payment Terms

Custom (Aluminum skin ＜0.18mm)

500kg per color

Working days after deposit received.

Goods will be delivered upon full balance payment.

Sea / Air / Land Transport T/T

Custom (Aluminum skin ＞0.18mm)

800kg per color

15-20 working days after deposit received.

Goods will be delivered upon full balance payment.

Sea / Air / Land Transport T/T

Note: No standard inventory is available. All HDP ACP panels are manufactured according to customer specifications.

Target Buyers: Building material distributors, architectural contractors, EPC companies, curtain wall fabricators and exterior renovation specialists.

Q1: What is the difference between HDP ACP and PE ACP?

HDP coating offers significantly better resistance to ultraviolet radiation, weathering and color fading than conventional PE coating, making it more suitable for long-term outdoor applications.

Q2: Is HDP ACP suitable for coastal environments?

HDP performs well in most urban and inland environments. For projects located within approximately 3 km of the coastline or in highly corrosive industrial areas, FEVE or PVDF coating systems are generally recommended for maximum durability.

Q3: Can HDP ACP be fabricated using standard ACP equipment?

Yes. HDP ACP maintains the same fabrication characteristics as conventional Aluminum Composite Panels and supports routing, grooving, folding, bending and curtain wall installation.

Warranty shall comply with the standard of ACP with the corresponding coating system.



PE (Polyester) Coating

Single-coat PE: 2-year warranty

Double-coat PE: 3-year warranty

Green, yellow, orange and grey color series are excluded.



HDP (High Weather-resistant Polyester) Coating

Green, yellow, orange and grey color series: 3-year warranty

Other color series: 5-year warranty



FEVE (Fluorocarbon) Coating

Tinted light colors (pink, light blue, light green, light yellow, light grey, etc.): 6-year warranty

Other color series: 10-year warranty



PVDF (Fluorocarbon) Coating

Tinted light colors (pink, light blue, light green, light yellow, light grey, etc.): 10-year warranty

Other color series: 15-year warranty
